Recthreefier

[GiovannyS10]

We could say that you have there some kind of "triple" Rectifier

LoL! Really!

[Plexi]

Messi rectifier (x3)

[Hatredman]

And Panama booting the USA out. Not that The Americans give any kind of damn for the Soccer World Cup..


.

[trixdropd]

My latest:

Prototype 8 channel MIDI switcher based on Teensy 3.2. I utilized Eagle 8.3 and the brand new Fusion 360 integration. The 3d Modeling was integral to this being right the 1st time with no mistakes.

Special shout-out to mammoth Electronics for the always excellent workmanship in the drilling, powder coating and graphics  printing.

Works with Blackstar Amps and their pesky DB-9 connector. Responds to both program and cc change messages. Requires no MIDI controller to program (most need a MIDI controller to send a pc to then build a preset onto)

[thermionix]

mammoth Electronics...graphics printing

I didn't know they offered that service.

[Benoi31]

My latest:

Prototype 8 channel MIDI switcher based on Teensy 3.2. I utilized Eagle 8.3 and the brand new Fusion 360 integration. The 3d Modeling was integral to this being right the 1st time with no mistakes.

Special shout-out to mammoth Electronics for the always excellent workmanship in the drilling, powder coating and graphics  printing.

Works with Blackstar Amps and their pesky DB-9 connector. Responds to both program and cc change messages. Requires no MIDI controller to program (most need a MIDI controller to send a pc to then build a preset onto)

Wow ! We need a tutorial for that!
I had some hard times to design a drilling template for a design of mine and this kind of approach could definitely help a lot...

[GiovannyS10]

My latest:

Prototype 8 channel MIDI switcher based on Teensy 3.2. I utilized Eagle 8.3 and the brand new Fusion 360 integration. The 3d Modeling was integral to this being right the 1st time with no mistakes.

Special shout-out to mammoth Electronics for the always excellent workmanship in the drilling, powder coating and graphics  printing.

Works with Blackstar Amps and their pesky DB-9 connector. Responds to both program and cc change messages. Requires no MIDI controller to program (most need a MIDI controller to send a pc to then build a preset onto)

Amazing project. Well developed, well finished.

[temol]

We could say that you have there some kind of "triple" Rectifier

indeed

T.

[Willypp]

Two more for the week.

Dual channel Crunchbox on vero from the tagboard layout.






Dual channel BSIAB...

[thermionix]

[goo]

my silicon fuzzface with soviet 2T602B / KT801B (2Т602Б / КТ801Б).
medium gain, pots are: Vol, Gain, Bias, Tone (input cap blend (10nF <---> 10uF (sic!)) - well, didn't have 100K so i put 250K, but it cuts bass pretty quick, need to try to put 100K resistor in parallel, hope it would work smoothly, but i don't really want to solder some "guts". again).
millenium bypass with mosfet (first transistor was shocked accidentally, second one works fine, NO POP).

[italianguy63]

One of two DeadAstronaut's Chasm Reverbs I am building.

If you are following the threads, the 2nd one had a bad reverb brick-- so it will be a little bit till it is completed.  Both of these are "custom" builds for friends....  So, different art/etches on each.

Thanks to you guys for helping me troubleshoot the problem.  I appreciated the PM's and support!

"Savage" reverb:










BTW-- "new" style knob I found.  I like it very much.  Smaller diameter than the regular Davis'.  Metal insert.  Nice and heavy feel.

[temol]

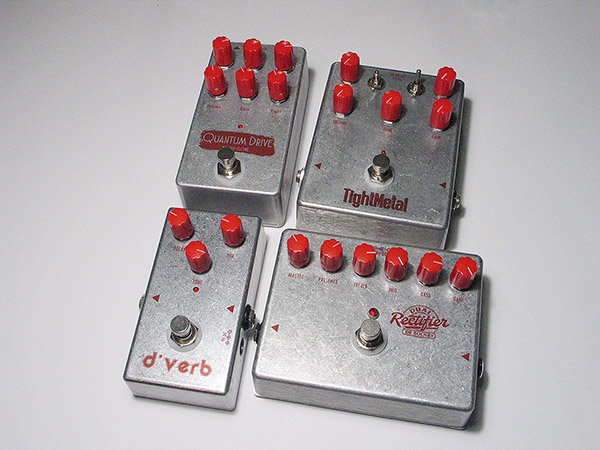

Today I finished another (the last one) pedal for my colleague. It's a Friedman BE-OD clone, also in red.





So, now I have four pedal in series  - Boogie, TightMetal, d'verb and BE-OD.



T.

[BetterOffShred]

Silk Screened?

[temol]

No, it's a transparent waterslide decal.

T.

[mnemosyne]

Second pedal build, same as the last one I did (TC Electronic Integrated Preamp clone) but I bought a bigger box this time so I could fit a bypass switch.  Being able to turn off a pedal sure is convenient.

I forgot to buy an LED though, so no light yet. I'll add one next time I do a parts order.








I do have red caps for the tops of the knobs, but i didn't think they looked right with the sanded enclosure, too clean, so I left them off. I may just get different knobs at some point.

[temol]

Another one - Überwald. It's a jfet high gain preamp - Black Forest (based on Bogner Uberschall).



T.

[duck_arse]

Second pedal build ,,,,,, so no light yet.

if this had a led, I'd say "excellent; build of my week". no led? build of my week.

[thermionix]

You'll never guess what this is.
