Andi · March 14, 2009, 07:40:28 PM

That's very kind of you.

There are a few bits I didn't get quite right, but most of them are hidden. Still needs wiring up, but I can do that tomorrow.

hubble · March 15, 2009, 02:43:48 AM

a work in progress...zebra fuzz? pimp drive?

Fuzz Aldryn · March 15, 2009, 06:37:21 AM

Hi,

my second reverse etch work of an Escobedo design, the PWM. Thanks again to Solidhex for his kind support and layout work. Made some small mods to it and did make the lfo swichable as you can see. I realy dig that litlle gadget.

Helge

SpencerPedals · March 15, 2009, 09:12:51 AM

Very nice. I like the reverse etches.

punkin · March 15, 2009, 09:46:38 AM

Quote from: MarcoMike on March 10, 2009, 01:37:40 PM
Quote from: npx on March 10, 2009, 12:28:38 PM

Modified Ross Compressor.

All your work is just beautiful!! but I guess you can tell this is my favourite and really fits with the idea of compressing...

I've seen a few boxes where the LED is mounted without a bezel...just a hint of the lens peeping through the surface. How is this done? How is the LED secured inside? I really like this look.

frequencycentral · March 15, 2009, 09:53:43 AM

Quote from: punkin on March 15, 2009, 09:46:38 AM
I've seen a few boxes where the LED is mounted without a bezel...just a hint of the lens peeping through the surface. How is this done? How is the LED secured inside? I really like this look.

I just drill the right size hole for the LED and push it through, no glue need as it's a really close fit. You can use some gel glue if it makes you feel better!

This one's got four LEDs done that way:

Barcode80 · March 15, 2009, 11:42:55 AM

i do the flush mount LED thing, my trick is to use a unibit to drill a hole just too small for the led, and push the unibit in until i've drilled the next size almost thru the enclosure. this creates kind of a pocket for the led. then i touch some glue on the back to secure it or i have it wired in such a way that the LED is held in by it's own wiring.

punkin · March 15, 2009, 12:14:12 PM

Ah, I see...thanks. I'm guessing a little RTV/Silicone would do the same.

Again, thanks for the tip.

dellamorte · March 15, 2009, 10:04:08 PM

Quote from: syndromet on March 12, 2009, 06:26:34 PM

im not the only dexter fan

Br4d13y · March 15, 2009, 11:31:56 PM

my first scratch build enclosure,fuzz, and vero!!!!! it is a bazz fuss, the B-fuzz. lots of debugging!

syndromet · March 16, 2009, 04:06:06 AM

Quote from: dellamorte on March 15, 2009, 10:04:08 PM
Quote from: syndromet on March 12, 2009, 06:26:34 PM

im not the only dexter fan

Seems like great minds think alike.

I have actually never seen Dexter, but I've heard it's great. I'm actually gonna sell pedals painted this way. It's gonna be a signature fuzz for a good friend of mine who plays bass-guitar.

dellamorte · March 16, 2009, 07:49:47 AM

the warhammer blood and gore colors from the local model shop work great

SpencerPedals · March 16, 2009, 08:24:44 AM

Quote from: syndromet on March 16, 2009, 04:06:06 AM
I have actually never seen Dexter, but I've heard it's great.

You're missing out...it definitely is. Nice looking pedal, btw.

syndromet · March 16, 2009, 09:18:51 AM

Quote from: dellamorte on March 16, 2009, 07:49:47 AM
the warhammer blood and gore colors from the local model shop work great

Mine is done with three different shades of red spraypaint.

Zen · March 16, 2009, 11:23:44 AM

Quote from: Andi on March 14, 2009, 06:13:34 PM

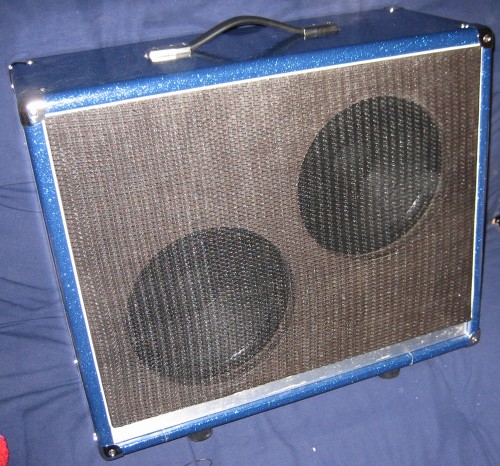

Not a pedal, but I am quite pleased with it. Not too bad for a first attempt...

Looks great!

what's your grill material? I once used some tan vinyl window screen

Andi · March 16, 2009, 12:20:49 PM

Just grille cloth from Allparts - same place I got the tolex, handle, corners, piping and feet.

snufkin · March 16, 2009, 12:23:20 PM

QuoteHi,

my second reverse etch work of an Escobedo design, the PWM. Thanks again to Solidhex for his kind support and layout work. Made some small mods to it and did make the lfo swichable as you can see. I realy dig that litlle gadget.

Helge

what a beauty !

kind of reminds me of roland effects

good work sir

Fuzz Aldryn · March 16, 2009, 12:52:31 PM

Quote from: snufkin on March 16, 2009, 12:23:20 PM

what a beauty !

kind of reminds me of roland effects

good work sir

Thank you, sir.

I'm not completely satisfied with the result as it was hard to apply the toner. It was a slippery task due to the few toner of the transfer-layout. So it got a little bit distorted and not that sharp edged as I wanted it to. But that's more obviously on the pic as in reality.
As the PWM sounds quite like a synth so my aim was to make it look like a 70s synth or an EHX pedal of that era. When I think about synthies, green is the colour that comes up first into my mind.

Dunno why!:D:D:D

Regards
Helge

snufkin · March 16, 2009, 01:03:37 PM

yeah looks like a space echo crossed with old ehx effects

be sure to post up some sound clips if you can

(i know tim has one on his site but its always interesting to hear more)

Fuzz Aldryn · March 16, 2009, 02:31:49 PM

Hehe^^

yeah, somthing like that or the EHX Poly Chorus.

Mine does sound a bit different than the examples which can be found on the net. This might be due to some minor mods I did as Solidhex suggested it. It sounds a bit smoother, less glitchy. The typ of th CD40106 does have an enormous impact on the whole sound of this gadget. Unfortunetly I'm not able to make some soundclips, because I've got no recording gear. But I can promise you it's worth a try!:)

Regards
Helge
